Customized 820 Standing Seam Roll Former 0-35M/min Forming Speed

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Tile Type : Colored Steel

Certification : CE, SGS

Condition : New

Customized : Customized

Usage : Roof, Wall

Transmission Method : Hydraulic Pressure

Transmission Mode : 1.2-Inch Quenched Chain

Cutting Method : Linear Guide Rail Cutting

Transport Package : Plastic Film & Steel Wire Fixed

Specification : 9300mmx1400mmx1100mm

Package Size : 930.00cm * 140.00cm * 110.00cm

Package Gross Weight : 6500.000kg

Contact Now

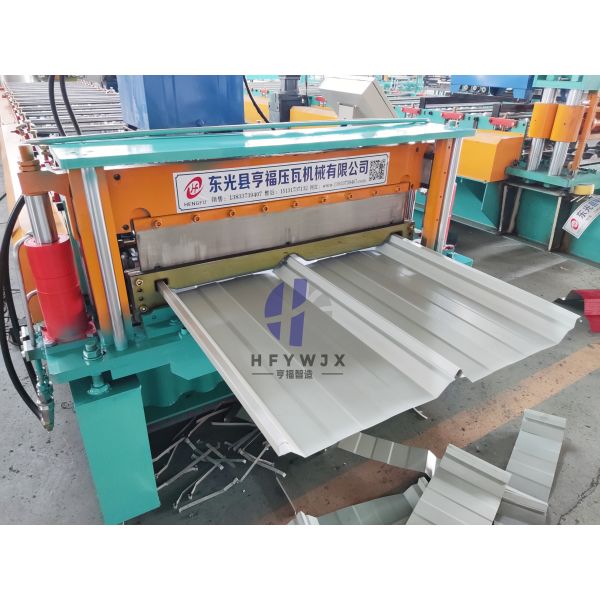

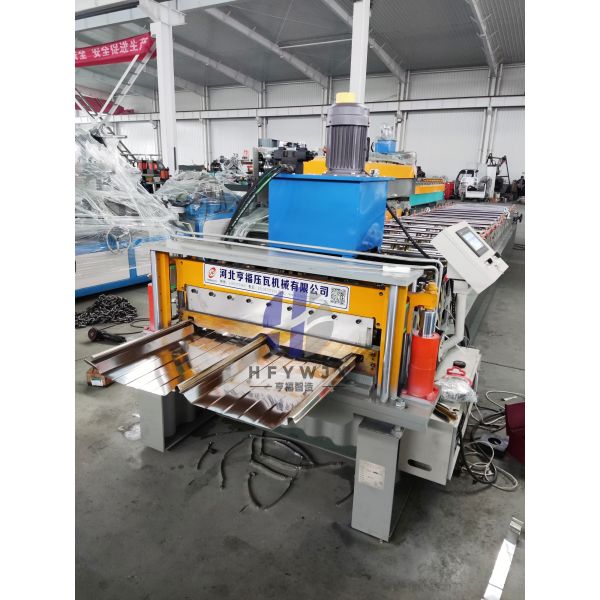

Customized Profile Forming 820 Roll Forming Machine

This high-altitude roll forming linear guide rail shearing equipment is a CNC intelligent operation solution customized for industrial production. It integrates roll forming and shearing processes to meet personalized user requirements.

The main framework is constructed from 400H steel, providing high strength and excellent rigidity for stable equipment operation. The rolls are made from 45# steel and undergo precision processing including rough turning, finish turning, outer circle grinding, and electroplating, ensuring high hardness and wear resistance for precise forming.

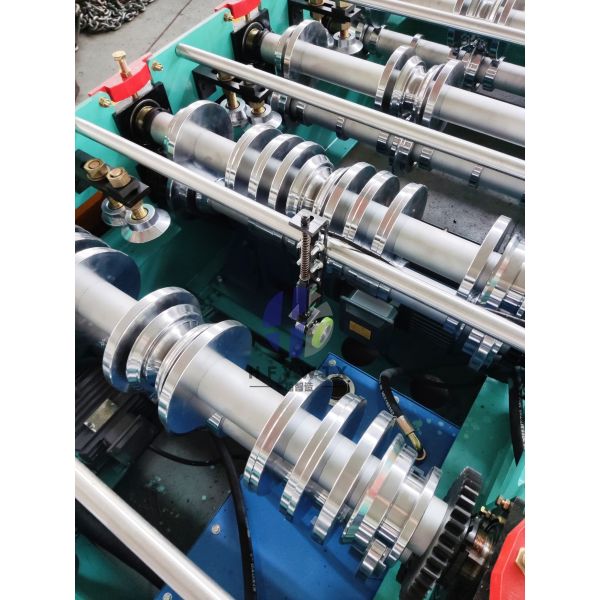

Equipped with 20 rows of forming rolling mill units and a Φ70mm spindle, the machine delivers strong transmission performance for continuous linear guide rail production. The dual-hand rocking feeding rack provides safe and reliable manual operation control.

After forming, the straight guide rail undergoes shearing with the capability to cut three pieces simultaneously, significantly improving production efficiency. The CNC intelligent operation system enables automatic control throughout the production process, reducing labor intensity while ensuring consistent product quality for various mechanical equipment applications.

Technical Specifications
Specification Details
Model NO. 820
Condition New
Usage Roof, Wall, Building
Feeding Width 1000mm
Machine Frame 400H steel frame
Forming Speed 0-35M/min
Type of Driven Chain Transmission
Transmission Method Hydraulic pressure
Number of Rolling Mill Sets 20 row molding
Spindle Diameter Φ70mm (Solid shaft)
Feeding Method Double hand rocking feeding rack
Specification 9300mm x 1400mm x 1100mm
Origin Cangzhou, Hebei
Warranty 1 year
Raw Materials Aluminum magnesium manganese
Product Gallery
Customized 820 Standing Seam Roll Former 0-35M/min Forming Speed Customized 820 Standing Seam Roll Former 0-35M/min Forming Speed Customized 820 Standing Seam Roll Former 0-35M/min Forming Speed Customized 820 Standing Seam Roll Former 0-35M/min Forming Speed Customized 820 Standing Seam Roll Former 0-35M/min Forming Speed
Frequently Asked Questions
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
What is the difference between your machines and cheaper alternatives?
  • The machine frame is thicker and will not deform even after prolonged use
  • The rollers feature high precision, ensuring a standard and consistent panel profile
  • The cutting system is stable, guaranteeing precise length accuracy
  • It boasts a low failure rate and low maintenance costs
  • It offers a significantly longer service life
How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.

Customized 820 Standing Seam Roll Former 0-35M/min Forming Speed
