1000 Type High Speed 13 Row Trapezoidal Roll Forming Machine With 12-15M/Min Forming Speed

  • 1
  • 2
  • 3

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Model NO. : 1000-type trapezoidal roll forming machine

Certification : SGS

Customized : Customized

Tile Type : Colored Steel

Condition : New

Usage : Roof

Transmission Mode : 1-Inch Chain Drive

Cutting Method : Guide Post 4kw Oil Pump Shearing

Package Size : 650.00cm * 160.00cm * 170.00cm

Package Gross Weight : 7000.000kg

Contact Now

High Speed Automatic 1000-type Trapezoidal Roll Forming Machine
Product Overview

The 1000-type Trapezoidal Roofing Sheet Roll Forming Machine is engineered to produce high-quality trapezoidal metal roofing sheets for industrial construction applications. This versatile machine manufactures panels for roof cladding, wall panels, and structural support, delivering durable and weather-resistant building products.

Constructed with a robust 350H steel frame, the machine ensures exceptional stability and extended service life. It features a Φ70mm solid spindle and 13 rows of forming stations, with a feeding width of 1219mm and forming speed of 12-15 meters per minute. The compact design (6500mm×1600mm×1700mm) facilitates easy integration into various production environments.

The machine utilizes chain drive and electric transmission for smooth, efficient operation. Equipped with a two-hand crank feeder featuring a pressure roller, it simplifies material handling while reducing operational complexity for enhanced worker productivity.

Customization options are available for profiles and machine colors to meet specific requirements. Manufactured in Cangzhou, Hebei, this machine includes a 1-year warranty with comprehensive after-sales support.

Technical Specifications
Model NO 1000
Condition New
Usage Roof, Building
Feeding Width 1219mm
Machine Frame 350H steel frame
Forming Speed 12-15M/min
Color Customized
Type of Driven Chain drive
Transmission Method Electric
Number of Rolling Mill Sets 13 row molding
Spindle Diameter Φ70mm (Solid shaft)
Customized Customized
Feeding Method Two-hand crank feeder (with pressure roller)
Specification 6500mm×1600mm×1700mm
Origin Cangzhou, Hebei
Warranty 1 year

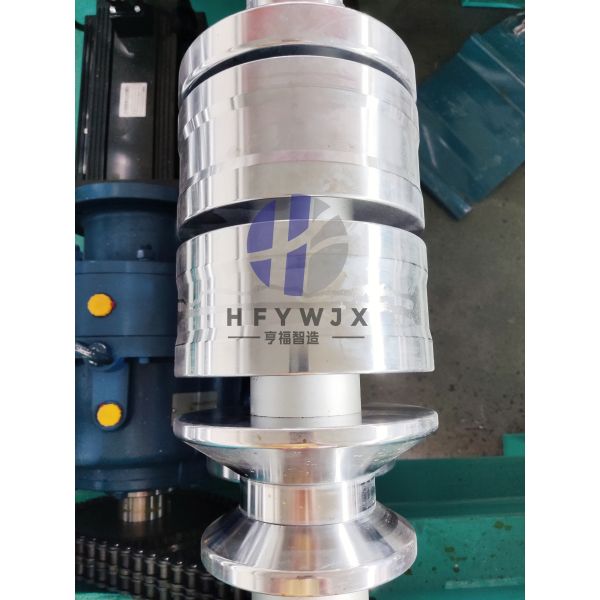

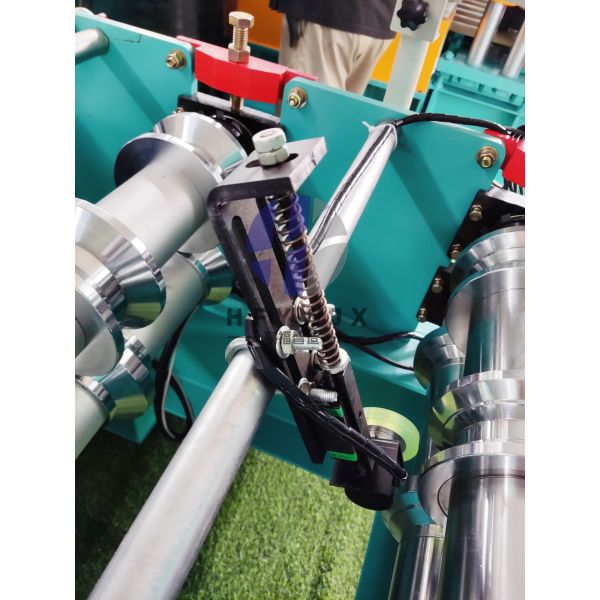

Product Images
1000 Type High Speed 13 Row Trapezoidal Roll Forming Machine With 12-15M/Min Forming Speed 1000 Type High Speed 13 Row Trapezoidal Roll Forming Machine With 12-15M/Min Forming Speed 1000 Type High Speed 13 Row Trapezoidal Roll Forming Machine With 12-15M/Min Forming Speed 1000 Type High Speed 13 Row Trapezoidal Roll Forming Machine With 12-15M/Min Forming Speed 1000 Type High Speed 13 Row Trapezoidal Roll Forming Machine With 12-15M/Min Forming Speed
Frequently Asked Questions
Can the machine produce curved or irregularly shaped panels?
Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
