High Strength Frame 1000-type Trapezoidal Roll Forming Machine

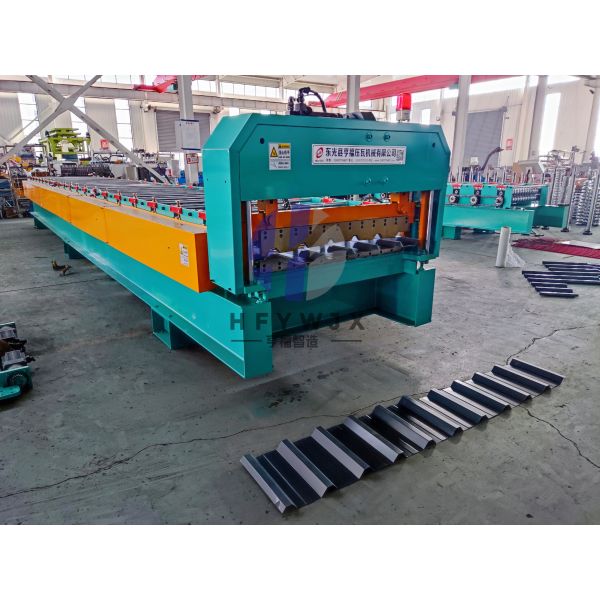

The 1000-type Trapezoidal Roofing Sheet Roll Forming Machine is a specialized equipment designed to produce high-quality trapezoidal metal roofing sheets widely used in industrial construction projects. It is ideal for manufacturing durable, weather-resistant panels for roof cladding, wall panels, and structural support applications. This new machine is built for continuous production, ensuring stable performance and reliable output.

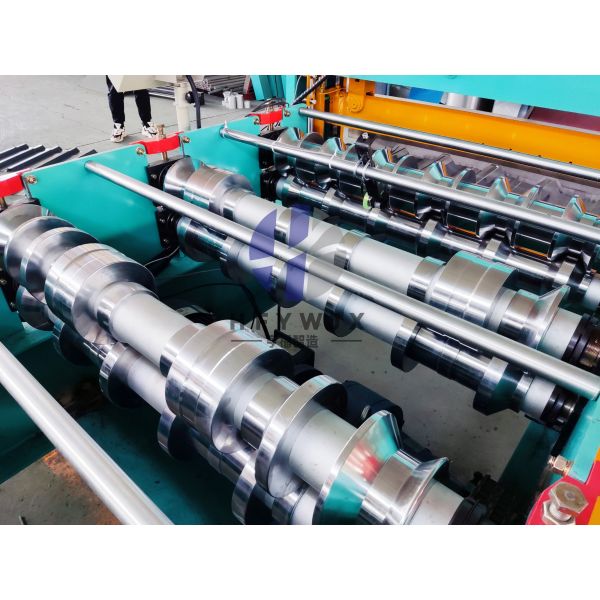

The machine features a heavy-duty 350H steel frame for strong stability, with a Φ70mm solid spindle and 13 rows of forming stations. It processes raw material with a feeding width of 1219mm at a forming speed of 12-15 meters per minute. The entire line measures approximately 6500mm×1600mm×1700mm, offering a compact footprint suitable for various factory layouts.

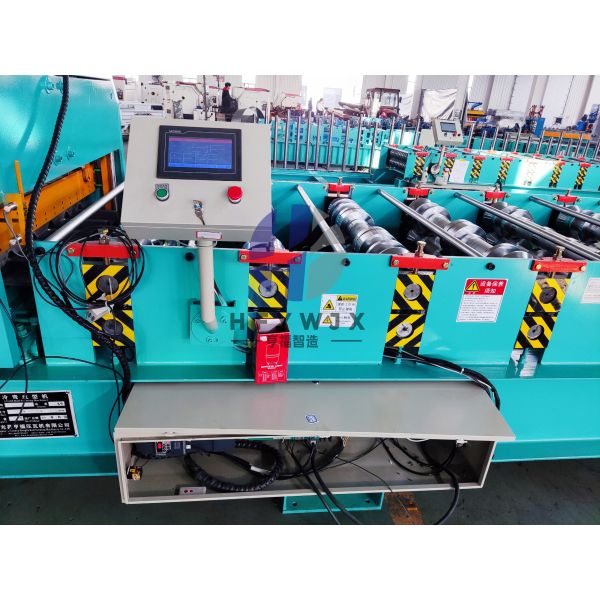

Equipped with chain drive and electric transmission, the machine ensures smooth and reliable operation. It uses a two-hand crank feeder with a pressure roller for easy material feeding. The design is simple yet durable, minimizing downtime and making it easy for operators to learn and use quickly.
The machine supports full customization, including profile design and equipment color, to meet specific project requirements. Originating from Cangzhou, Hebei—a renowned machinery manufacturing base, it comes with a 1-year warranty, providing customers with reliable after-sales protection and peace of mind.
Technical Specifications
| Model NO |
1000 |
| Condition |
New |
| Usage |
Roof, Building |
| Feeding Width |
1219mm |
| Machine Frame |
350H steel frame |
| Forming Speed |
12-15M/min |
| Color |
Customized |
| Type of Driven |
Chain drive |
| Transmission Method |
Electric |
| Number of Rolling Mill Sets |
13 row molding |
| Spindle Diameter |
Φ70mm (Solid shaft) |
| Customized |
Customized |
| Feeding Method |
Two-hand crank feeder (with pressure roller) |
| Specification |
6500mm×1600mm×1700mm |
| Origin |
Cangzhou, Hebei |
| Warranty |
1 year |
Product Gallery
Frequently Asked Questions
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
